Samples：
Flat Handle bag
D-cut bag
Shoes bag
T-shirt bag U&W
Type | HBL-DB700 | HBL-DB800 |
Handle Loop Sealing Speed | 20-100 pcs /min | 20-100 pcs /min |
Bag Making Speed | 20-160pcs /min | 20-160pcs /min |
Bag Width | 100-800mm | 100-800mm |
Bag Length | 200-600mm | 200-700mm |
Bag-Making Thickness | 30-120g | 30-120g |
Power Supply | 220V | 220V |
Total Power | 18KW | 20KW |
Overall Dimension （L*W*H） | 8.1m*2m*2.1m | 8.1m*2.2m*2.3m |
Weight | 3600kg | 3700kg |
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number. automatic loading material system.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when its running out of material.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic D-cut punching
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.

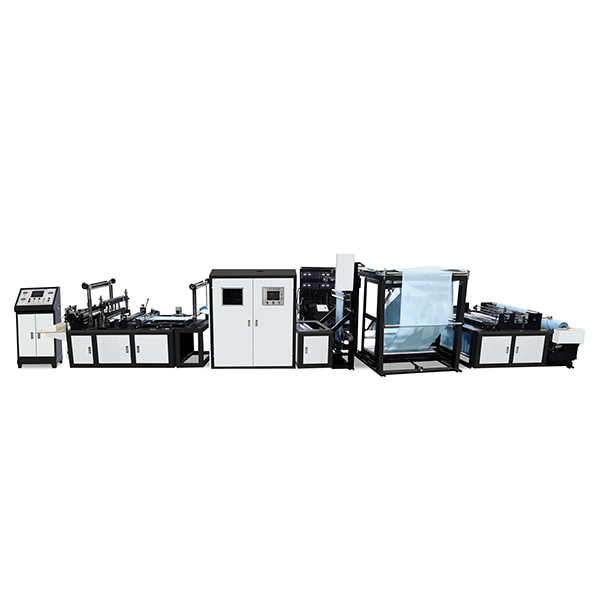

Product Introduction:
This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-100 pcs/min, it equals to 5 workers operating 5 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.
