Explore suitable machines and production configurations for different nonwoven bag types, including loop handle bags, box bags, D-cut bags, drawstring bags, T-shirt bags, and special-purpose bags.
Suitable for packaging apparel and footwear products.
Gift Packaging
Suitable for the packaging and display of premium gifts and promotional items.

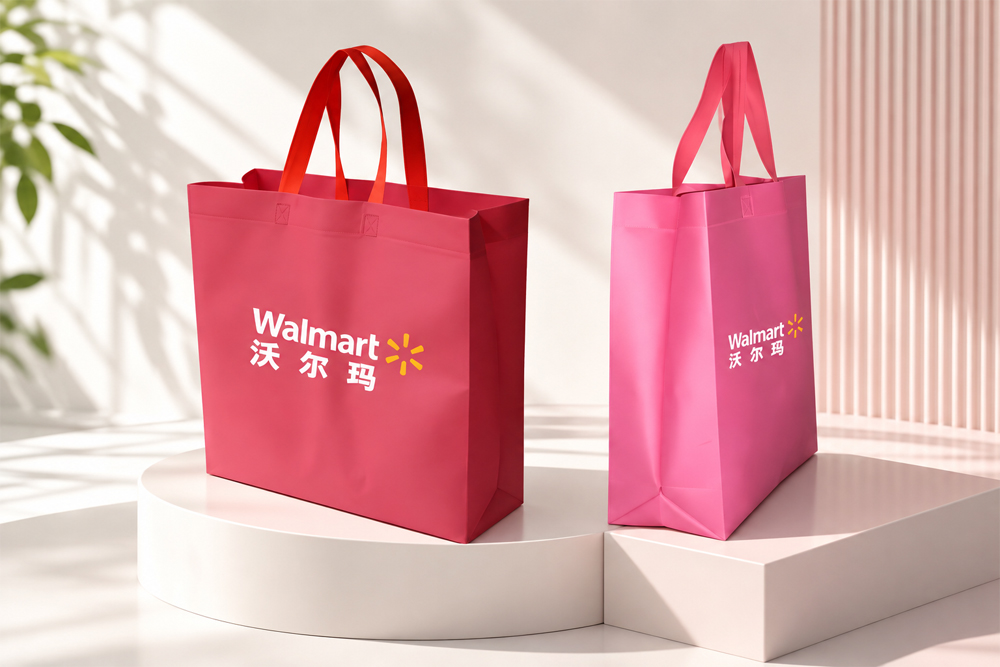

Retail Shopping
Suitable for use as shopping bags in supermarkets and department stores.
Wine and Premium Products
Suitable for the outer packaging of wines and high-end merchandise.
Recommended Main Machine

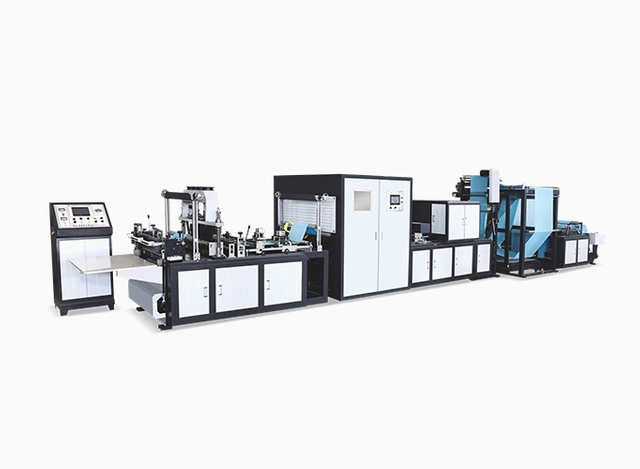

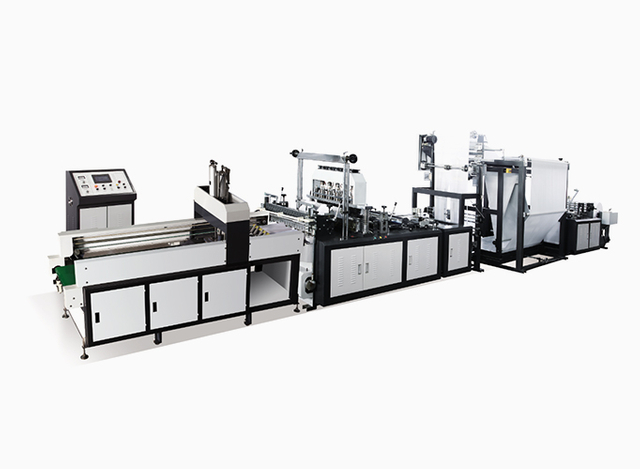

HBL-DC Series Bag Making Machine
Designed for nonwoven materials, this series can produce nonwoven bags in a wide range of specifications and shapes. Models such as the HBL-DC700 can automatically weld handles during the bag-making process; the handle-welding speed reaches 20-70 pieces per minute-an output equivalent to that of five separate handle-welding machines and five operators.
Corresponding "5-in-1" or Seperate handle machine

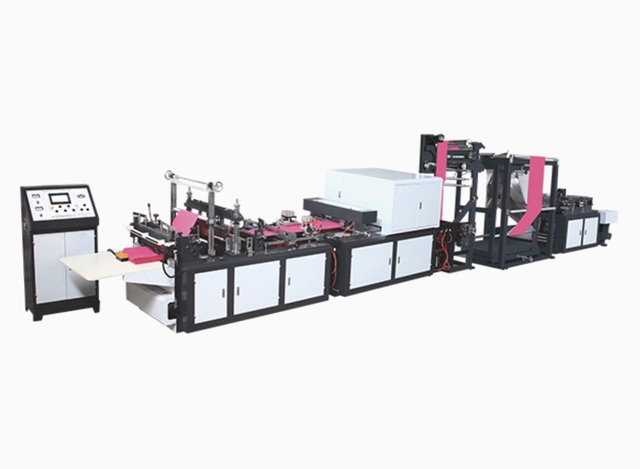

We recommend the "5-in-1" multifunctional bag-making machine (e.g., HBL-DC700). This type of machine integrates multiple functions-such as sealing，folding, cutting-into a single unit, capable of producing various bag styles including handle bag, box bags,D-cut bag, flat bags, vest-style bags, and drawstring bags.
Optional Equipment
Flexo Printing Machine
Used to print brand logos, promotional information, or custom designs on the bag body.
Nonwoven Slitting Machine
Used to slit wide rolls of nonwoven fabric to the widths required for bag making.
Seperate Handle Sealing Unit
Semi-auto handle welding device integrated into the bag-making line.
Ultrasonic folding and welding of the bag opening; formed in a single step with a secure, neat seal.

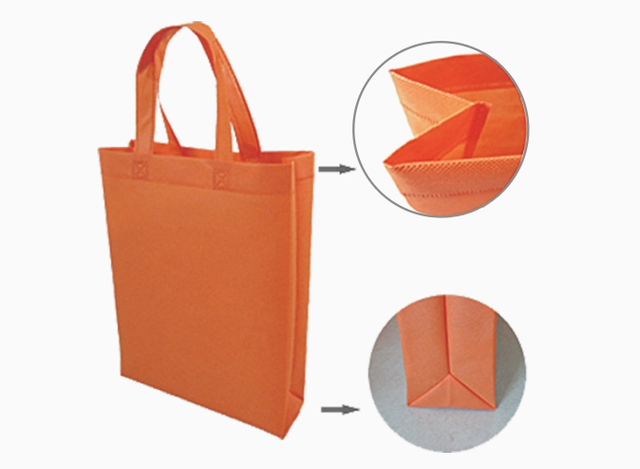

Bottom Gusseting
Suitable for bottom-gusseted bag styles; enhances the bag's 3D structure and load-bearing capacity.
D-Cut Punching
Precision D-cut punching; results in a uniform and attractive bag shape.
Printing Color Mark Tracking
Computer-controlled length setting and print mark tracking for precise positioning and automatic stop.
Single-line or Multi-line Production

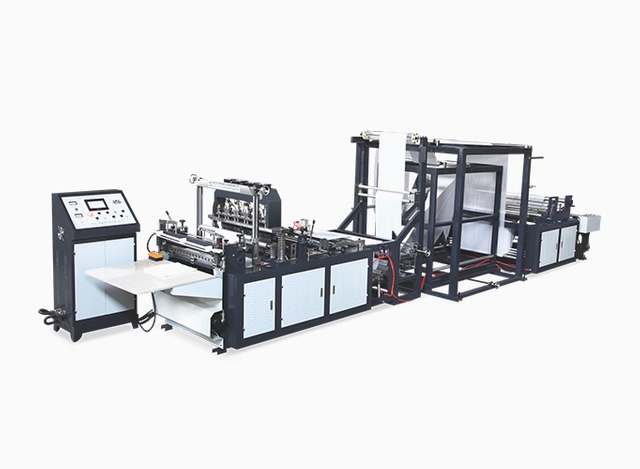

The HBL-DT700 dual-line bag making machine enables simultaneous dual-channel production of D-Cut bags, effectively doubling output—ideal for high-volume D-Cut bag orders.

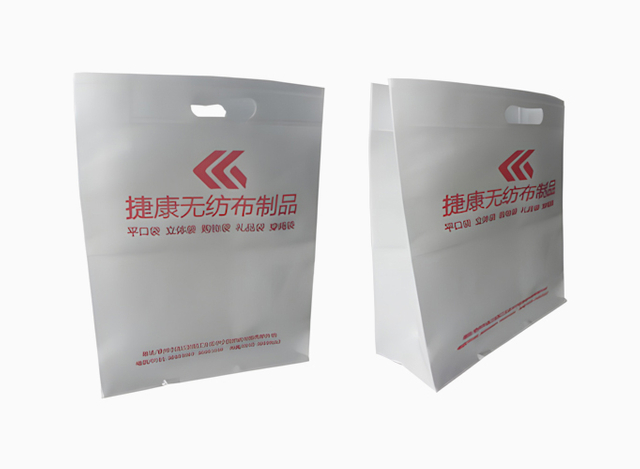

Automatic D-Cut Punching Solution
D-Cut punching is integrated directly into the bag forming process, eliminating the need for a separate punching machine; combined with print mark tracking, it ensures precise and consistent hole positioning on every bag.

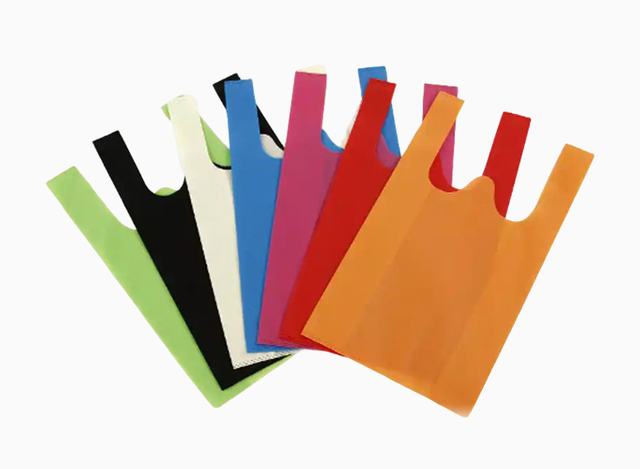

T-SHIRT / W-CUT BAG SOLUTION
Recommended Configuration
Nonwoven Slitting
Bag Making
W-Cut Punching
Counting and Collection
Selection Criteria
Single-Line or Double-Line
Single-line is suitable for small-batch, multi-variety production; double-line (e.g., HBL-DT700) is suitable for mass production, offering double the efficiency.
Online or Offline Punching
Punching can be performed inline with bag making or as a separate offline process; both HBL-AC700 and HBL-DT700 come with standard punching functionality.
Bag Width
HBL-AC700/HBL-DT700 (700 series) supports widths of 200–450 mm; HBL-AC800/HBL-DT800 supports 200–550 mm.
Fabric GSM
Standard models accommodate 30-120 gsm (some models 20-80 gsm); the compact HBL-500 model accommodates 20-60 gsm.
Target Production Speed
Bag-making speed: 20-120 pcs/min; punching speed: 20-60 pcs/min (high-speed mode up to 80 pcs/min).
BAG TYPE AND EQUIPMENT SELECTION CHART
Bag Type
Recommended Main Machine
Optional Equipment
Automation
Box Bag
Box Bag Making Machine
Bag Making Machine, Printing, Slitting, Handle Sealing
Fully Automatic
Loop Handle Bag
Bag Making Machine
Bag Making Machine, Printing, Slitting, Loop Handle Sealing Machine
Online or Separate

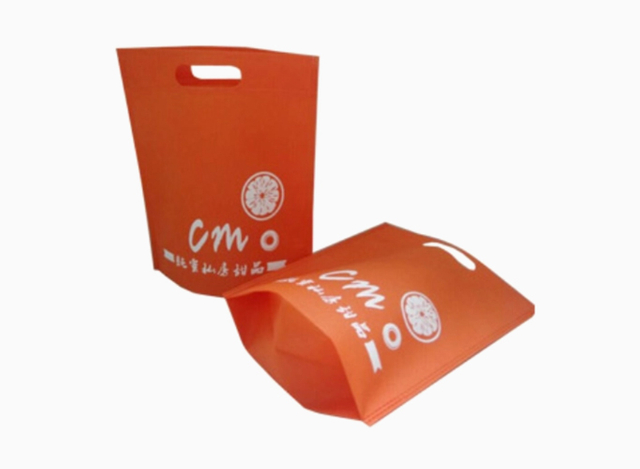

D-Cut Bag
D-Cut Bag Making Machine
Bag Making Machine, Printing, Slitting, Punching
Fully Automatic
T-Shirt / W-Cut Bag
T-Shirt Bag Making Machine
Bag Making Machine, Printing, Slitting, Punching
Single or Double Line
Drawstring Bag
Basically Every Bag Making Machine Can Do It
Bag Making Machine, Printing, Slitting, Cutting and Auxiliary Equipment
Fully Automatic
Special Bag
Customized Machine
Bag Making Machine, Printing, Slitting, Based on Bag Sample
Customized
HOW WE RECOMMEND THE RIGHT MACHINE
A single machine can produce a wide range of bag types and sizes by changing molds and adjusting settings.
Whether you need flat bags, box-style/3D bags, D-cut bags, T-shirt bags, drawstring bags, or handle bags, our machines offer flexibility to accommodate multiple bag styles.
The final configuration depends on your specific product mix and production needs.

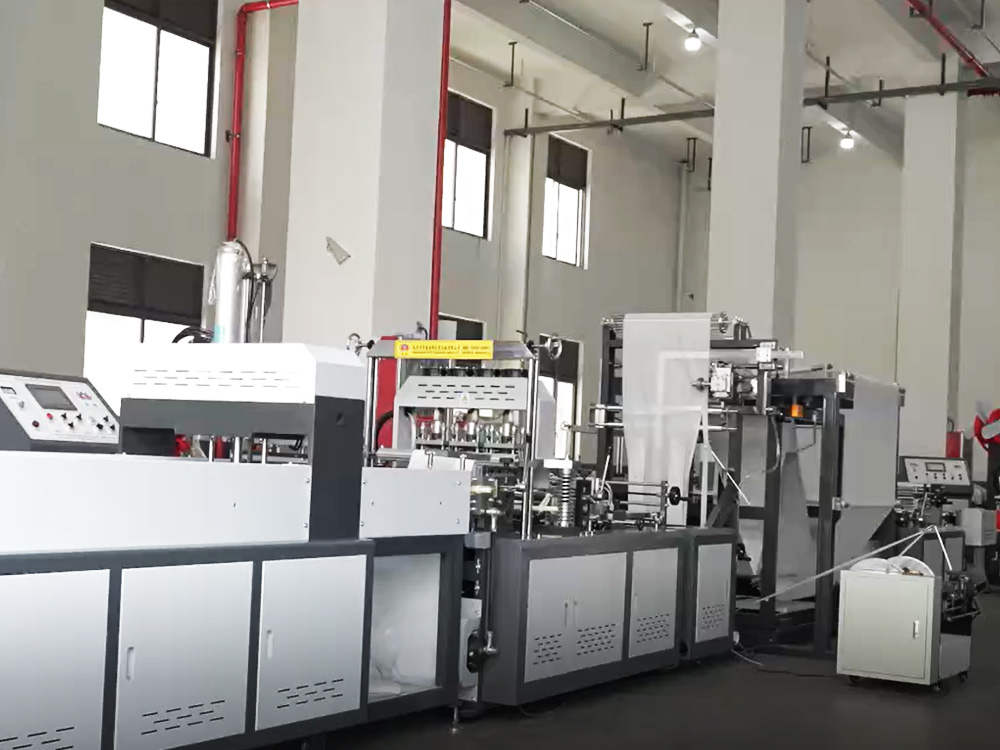

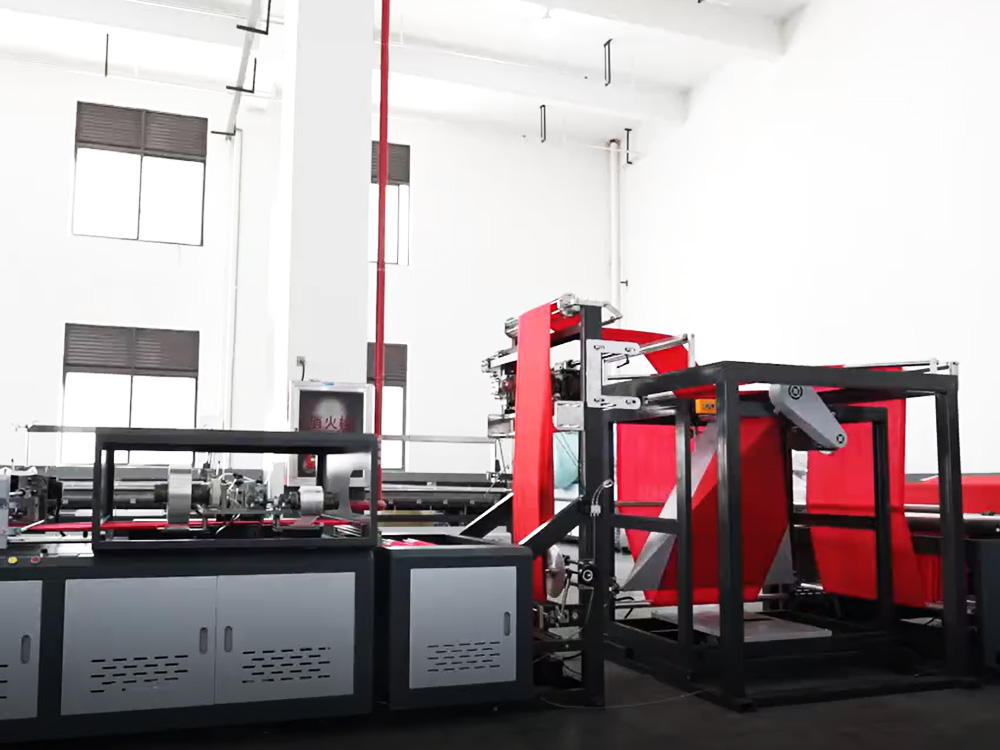

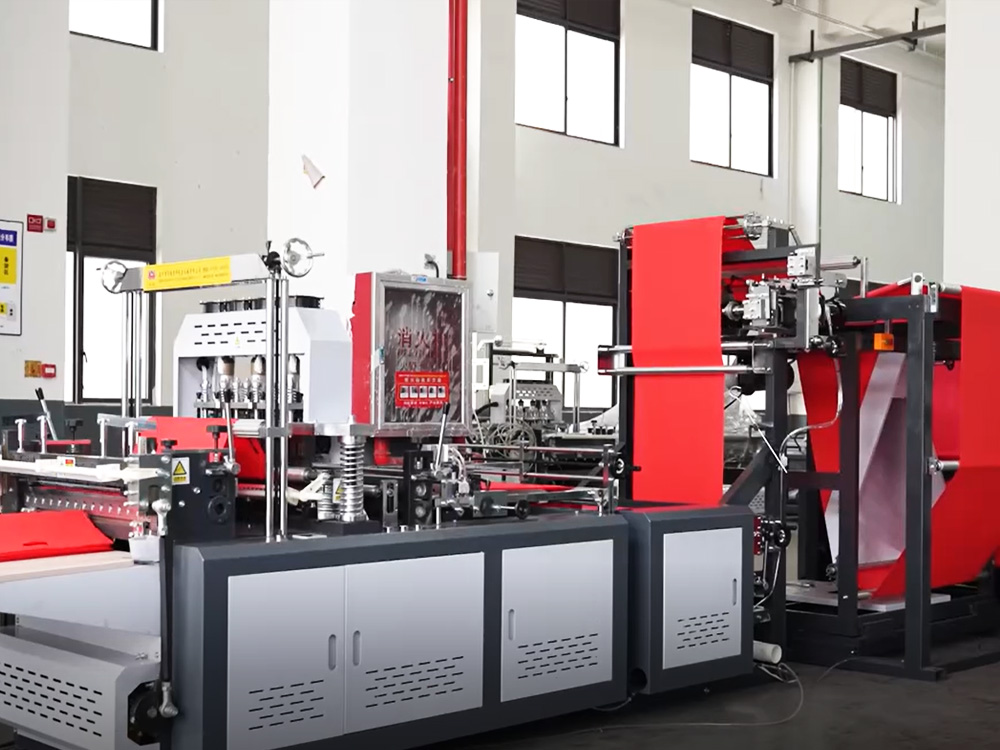

VIDEO
FAQ
Which machine can produce a variety of bag types?
The HBL-DC700 offers the most comprehensive functionality; it can produce handle bags, box-bottom bags, D-cut bags, flat bags, drawstring bags, and T-shirt bags (requires an additional punching machine). Other models also support multiple bag types, so the final choice depends on the specific types of bags you primarily need to produce.
Is a separate punching machine required to produce T-shirt bags?
It depends on the machine model. The HBL-AC700 and HBL-DT700 come with a built-in punching function as standard, whereas the HBL-DC700, HBL-DB700, HBL-C700, and HBL-B700 require a separate punching machine to produce T-shirt bags. We offer both automatic and manual punching machines; the automatic version is recommended, as it can be directly linked to the bag-making machine, resulting in higher efficiency and reduced labor requirements.
Can the machine attach loop handles automatically?
The HBL-DC700 and HBL-DB700 feature fully automatic loop-handle sealing capabilities, with speeds ranging from 20 to 75 pieces per minute. For other models, a separate handle-sealing machine is required.
Is a printing machine required?
If you need to print patterns or text on the bags, a flexographic printing machine must be installed at the beginning of the bag-making line. All models support printing registration mark tracking and positioning.
Can my materials be tested before mass production?
Yes. Huabo has an experienced technical team that can provide material testing services for clients prior to mass production. We can also send you trial run videos for reference.
What information is required for a quotation?
Typically, the following details are needed: bag style, bag dimensions (width × length), non-woven fabric weight (GSM), and whether fully automated production is required. Please also specify if printing or handles are needed.
SEND US YOUR BAG SAMPLE OR PRODUCTION REQUIREMENTS
Share your bag type, size, fabric GSM, printing colors, handle style, and required capacity.
Huabo's technical team will recommend a suitable machine or complete production configuration for your project.
