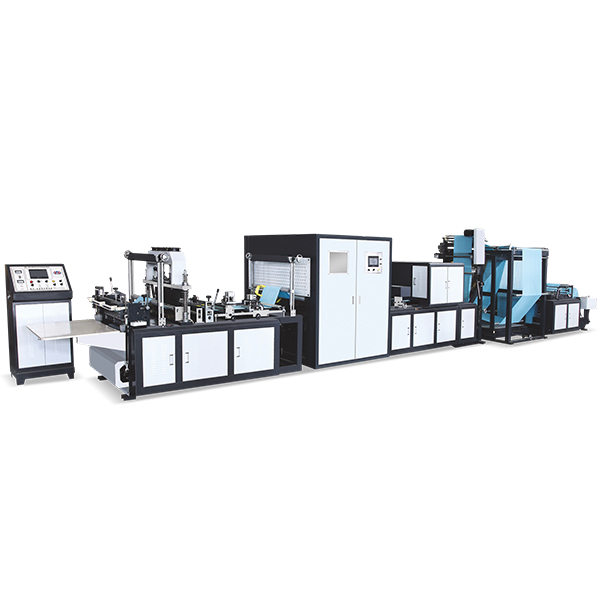

HBL-DC700 Nonwoven Bag Making Machine

Availability:
Quantity:

Samples:

183

Box Handle bag

178

Flat Handle bag

182

Box Bag


179

D-cut bag

180

Shoes bag

181

 T-shirt bag U&W


Type

HBL-DC700

HBL-DC800

Handle Loop Sealing Speed

20-100 pcs /min

20-100 pcs /min

Bag Making Speed

20-160pcs /min

20-160pcs /min

Bag Width

100-800mm

100-800mm

Bag Length

200-600mm

200-700mm

Bag-Making Thickness

30-120g

30-120g

Power Supply

220V

220V

Total Power

18KW

20KW

Overall Dimension (L*W*H)

10.3m*2m*2.1m

10.3m*2.2m*2.3m

Weight

4100kg

4200kg


188189190


191192193


Features:

1. This machine adopts Taiwan touch screen computer display, PLC computer  program which can be edited.

2. Auto meter counting &stopping, could freely setting number. automatic loading material system.

3. Computer Fixed-length, printing color mark track orientation, Auto-stop when its running out of material.

4. High voltage static processor, Auto constant temperature heating controller.

5. This machine has the function of automatic D-cut punching.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate,firm sealing, beautiful and decent.


Product Introduction:

This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-100 pcs/min, it equals to 5 workers operating 5 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), box bags, flat bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.
