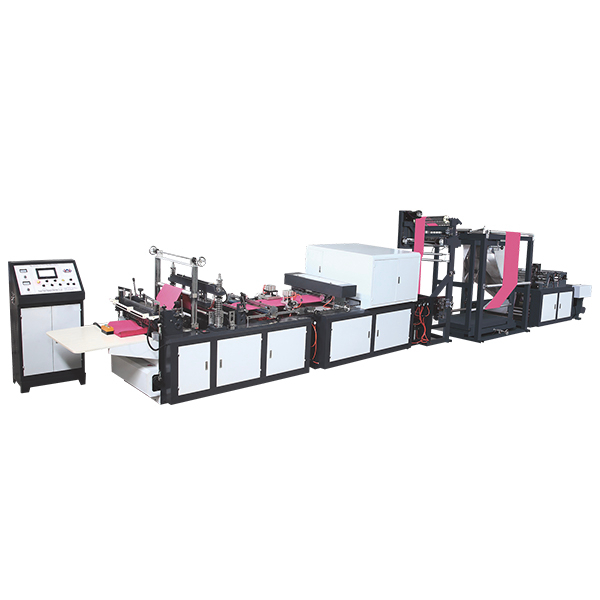

HBL-C700 Nonwoven Bag Making Machine

Availability:
Quantity:

Samples:

0

Box bag


0

D-cut bag


0

Shoes bag

0

T-shirt bag U&W


Type

HBL-C700

HBL-C800

Bag Making Speed

20-160pcs /min

20-160pcs /min

Bag Width

100-800mm

100-800mm

Bag Length

200-600mm

200-700mm

Bag-Making Thickness

30-120g

30-120g

Power Supply

220V

220V

Total Power

12-18KW

12-18KW

Overall Dimension (L*W*H)

9.6m*2m*2.1m

9.6m*2.2m*2.3m

Weight

2800kg

2900kg


160 161 162


163 164 165


166 167 168


Features:

1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.

2. Auto meter counting &stopping, could freely setting number.

3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.

4. High voltage static processor, Auto constant temperature heating controller.

5. This machine has the function of automatic D-cut punching

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.


Product Introduction:

This machine is suitable for non woven fabric material, can fully automatic make non woven bag products with different bag type and size, as box bag, flat bag, shopping bag, gift bag, clothes bag, handle loop bag, vest bag, shoes bag, drawstring bag and so on.
