| Quantity: | |
|---|---|
Samples：
Type | HB-1200 |
Length of the Handle Fabric | 350-550mm |
Max.Width Unwinding Nonwoven Fabric | 1150mm |
Max.Cutting Width | 600mm |
Speed | 50-100pcs/min |
Thickness of Nonwoven Fabric | 30-160gsm |
Voltage | 220V,50-60Hz |
Overall Dimension （L*W*H） | 5m*3.5m*2m |
Total Power | 13kw |
Weight | 2100 kg |
Features:
1. The machine adopts computer control system, stepping motor control cutting, photoelectric tracking, automatic
rectify deviation , no material alarm, host frequency conversion, tension control, ultrasonic welding, etc.
2. After folding, welding the handle-ring on the material by the two side soft handle sealing machine. Then cut it out.
3. Cutter parts, adopt the heavy quality tools to cut, the product in order, and no sharp edges.
4. Simple operation, high precision intercept, mechanical stability, low noise advantages.
5. Conveniently and quickly installation.
6. Technological process: feeding - folding - ultrasonic welding stripe- cutting- counting-inished product.
Usage:

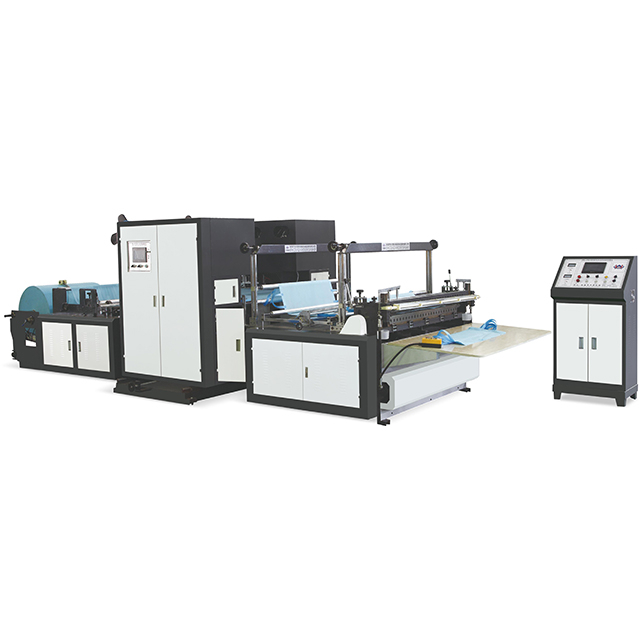

This machine is the most advanced non-woven cutting machine currently. It is special in non-woven piece of material,it is with automatic handle when cutting non woven fabric, mainly for non-woven manual sewing bag, wine bags, gift bags, greatly reduce the labor intensity, improve work efficiency and save cost, is the best of the non woven cutting and handle sealing equipment.
