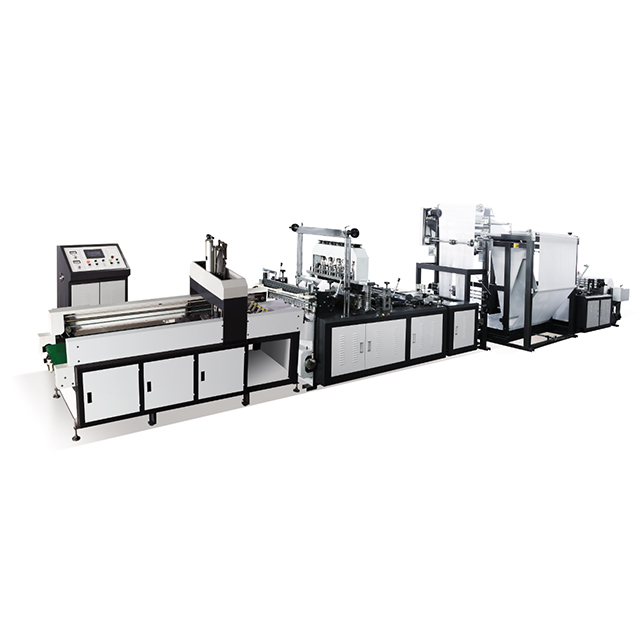

HBL-DT Double Line Nonwoven Bag Making Machine

Availability:
Quantity:

Samples:

161

T-shirt bag U&W

158

D-cut bag

160

Shoes bag


Features:

1. This machine adopts Taiwan touch screen computer display, PLC computer  program which can be edited.

2. Auto meter counting &stopping, could freely setting number.automatic loading material system.

3. Computer Fixed-length, printing color mark track orientation, Auto-stop when its running out of material.

4. High voltage static processor, Auto constant temperature heating controller.

5. This machine has the function of automatic punching.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed,

fast speed, easy to operate,firm sealing, beautiful and decent.


Product Introduction:

This machine is suitable for non woven fabric material only, It can fully automatic make non woven bag products with different bag type and size, such as T-shirt bags (vest bags), flat bags,shoes bags, drawstring bags and so on. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It’s very popular in worldwide.


Type

HBL-DT700

HBL-DT800

Punching Speed

20-100pcs /min

20-100pcs /min

Bag Making Speed

20-160pcs /min

20-160pcs /min

Bag Width

100-800mm

100-800mm

Bag Length

200-600mm

200-700mm

Bag-Making Thickness

30-120g

30-120g

Power Supply

220V

220V

Total Power

12KW

15KW

Overall Dimension (L*W*H)

9.6m*2m*2.1m

9.6m*2.2m*2.3m

Weight

2500kg

2700kg
